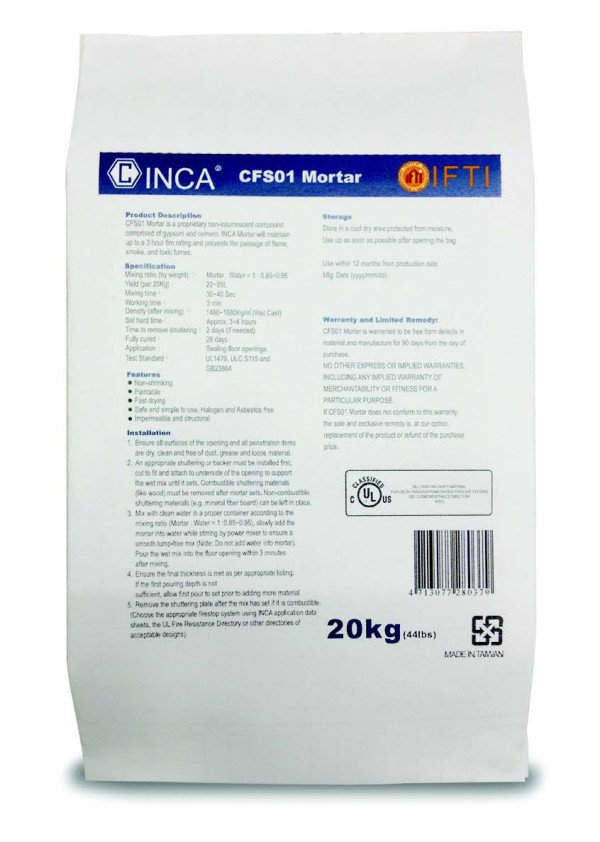

CFS01 Mortar is an industry leading non-intumescent firestop mortar comprised of a proprietary blend of gypsum and cement.
CFS01 Mortar is designed with installation convenience in mind. Our "Variable Viscosity" technology allows the installer to add less water for a thicker consistency or more water for a thinner consistency, depending on the application needs.
CFS01 Mortar provides up to 3 hours fire rating to prevent passage of flame, smoke, and toxic fumes. Per its mix ratios, CFS01 Mortar is the most cost effective mortar solution on the market. It is typically used to seal mechanical and electrical service penetrations, blank openings and other large annular spaces in fire-resistance rated wall and floor assemblies with ratings up to 3 hour assembly testing.
CFS01 Mortar is non-shrinking, paintable, fast drying, safe, simple to use, halogen and asbestos free. Water and gas impermeable, it offers excellent structural strength while still being re-penetrable and repairable. Meets the intent of LEED® VOC environmental air quality requirements.
Specifications
Mixing ratio by weight: (1 part mortar mix: 0.85 - 0.95 part water)
Yield (per 20Kg): 22-25L (1345 in3 - 1525 in3 )
Density (after mixing): 1400-1650 kg/m3 (Wet cast)
Drying time: 3 - 4 hours
Time to remove backer (if required): 2 days
Fully cured: 28 days Application
Temperature Range: 40° F - 104° F (5° C - 40° C)
In-Service Temperature: -13° F - 176° F (-25° C - 80° C)
Packing: 20Kgs/Bag
Shelf Life: 3 years, when stored indoors in dry conditions in original unopened packaging.
Testing
ASTM E 814 up to 3 hr F and T Rating
UL 1479 3 hr F and T Rating
L Rating at Ambient - Less than 1 cfm/sq. ft.
GB 23864
CAN/ULC S-115 up to 3 hr FTH Rating
L Rating at Ambient - Less than 5.1 L/S/m2
CFS01 Mortar is designed with installation convenience in mind. Our "Variable Viscosity" technology allows the installer to add less water for a thicker consistency or more water for a thinner consistency, depending on the application needs.
CFS01 Mortar provides up to 3 hours fire rating to prevent passage of flame, smoke, and toxic fumes. Per its mix ratios, CFS01 Mortar is the most cost effective mortar solution on the market. It is typically used to seal mechanical and electrical service penetrations, blank openings and other large annular spaces in fire-resistance rated wall and floor assemblies with ratings up to 3 hour assembly testing.
CFS01 Mortar is non-shrinking, paintable, fast drying, safe, simple to use, halogen and asbestos free. Water and gas impermeable, it offers excellent structural strength while still being re-penetrable and repairable. Meets the intent of LEED® VOC environmental air quality requirements.
Specifications
Mixing ratio by weight: (1 part mortar mix: 0.85 - 0.95 part water)
Yield (per 20Kg): 22-25L (1345 in3 - 1525 in3 )
Density (after mixing): 1400-1650 kg/m3 (Wet cast)
Drying time: 3 - 4 hours
Time to remove backer (if required): 2 days
Fully cured: 28 days Application
Temperature Range: 40° F - 104° F (5° C - 40° C)
In-Service Temperature: -13° F - 176° F (-25° C - 80° C)
Packing: 20Kgs/Bag
Shelf Life: 3 years, when stored indoors in dry conditions in original unopened packaging.
Testing
ASTM E 814 up to 3 hr F and T Rating
UL 1479 3 hr F and T Rating
L Rating at Ambient - Less than 1 cfm/sq. ft.
GB 23864
CAN/ULC S-115 up to 3 hr FTH Rating
L Rating at Ambient - Less than 5.1 L/S/m2
Attachments
- CFS01_Mortar-data-sheet.pdf (1.6M) 0 downloads | DATE : 2026-09-23 11:33:43
- MSDS CFS01FIRESTOP MORTAR.pdf (216.1K) 0 downloads | DATE : 2026-09-23 11:33:43
- CERTIFICATE OF COMPLIANCE.pdf (93.9K) 0 downloads | DATE : 2026-09-23 11:33:43
